Advanced Physical Modeling on Disk using Objects#
In the previous tutorial, we simply modeled the chemistry of a static cloud for 1 Myr. This is unlikely to meet everybody’s modeling needs and UCLCHEM is capable of modeling much more complex environments such as prestellar cores and shocks. In this tutorial, we model both a prestellar core and a shock to explore how these models work and to demonstrate the workflow that the UCLCHEM team normally follow. In tutorial 2a, we approach the modeling in a more classic approach, by writing the outputs to files, before passing them to the subsequent model class. In tutorial 2b, we calculate the exact same models, but take advantage of the model objects in order to perform all calculations in memory, bypassing the file system entirely.
import os
import matplotlib.pyplot as plt
import uclchem
The Prestellar Core#
Initial Conditions (Phase 1)#
UCLCHEM typically starts with the gas in atomic/ionic form with no molecules. However, this clearly is not appropriate when modeling an object such as a prestellar core. In these objects, the gas is already evolved and there should be molecules in the gas phase as well as ice mantles on the dust. To allow for this, one must provide some initial abundances to the model. There are many ways to do this, but we typically chose to run a preliminary model to produce our abundances. In many UCLCHEM papers, we refer to the preliminary model as phase 1 and the science model as phase 2. Phase 1 simply models a collapsing cloud and phase 2 models the object in question.
To do this, we will use uclchem.model.Cloud() to run a model where a cloud of gas collapses from a density of \(10^2 cm^{-3}\) to our prestellar core density of \(10^6 cm^{-3}\), keeping all other parameters constant. During this collapse, chemistry will occur, and we can assume the final abundances of this model will be reasonable starting abundances for the prestellar core.
# set a parameter dictionary for cloud collapse model
param_dict = {
"endAtFinalDensity": False, # stop at finalTime
"freefall": True, # increase density in freefall
"initialDens": 1e2, # starting density
"finalDens": 1e6, # final density
"initialTemp": 10.0, # temperature of gas
"finalTime": 6.0e6, # final time
"rout": 0.1, # radius of cloud in pc
"baseAv": 1.0, # visual extinction at cloud edge.
"abundSaveFile": "output_2a/startcollapse.dat", # save final abundances to file
"outputFile": "output_2a/phase1.dat",
}
if not os.path.exists("output_2a/"):
os.makedirs("output_2a/")
cloud = uclchem.model.Cloud(param_dict=param_dict)
# The cloud model has completed and saved output to output_2a/phase1.dat
# We can now load this file directly without the cloud object
del cloud
print("Cloud object deleted. Model saved to file for later loading.")
Cloud object deleted. Model saved to file for later loading.
With that done, we have run the model and stored the outputs into the object cloud, while also storing the final abundances by using: param_dict["abundSaveFile"]. We can pass this value our prestellar core model to use those abundances as our initial abundances. Of note, the parameter abundSaveFile has been removed from param_dict by creating the cloud object.
Running the Science Model (Phase 2)#
We need to change just a few things in param_dict to set up the prestellar core model. The key one is that UCLCHEM saves final abundances to abundSaveFile but loads them from abundLoadFile so we need to provide the abundLoadFile parameter to make the abundances we just produced our initial abundances.
We also want to turn off freefall and change how long the model runs for.
# change other bits of input to set up phase 2
param_dict["initialDens"] = 1e6
param_dict["finalTime"] = 1e6
param_dict["freefall"] = False
# freeze out is completely overwhelmed by thermal desorption
# so turning it off has no effect on abundances but speeds up integrator.
param_dict["freezeFactor"] = 0.0
param_dict["abstol_factor"] = 1e-18
param_dict["reltol"] = 1e-12
# pop is dangerous, it removes the original key so you can't rerun this cell.
param_dict["abundLoadFile"] = "output_2a/startcollapse.dat"
param_dict["outputFile"] = "output_2a/phase2.dat"
p_core = uclchem.model.PrestellarCore(
temp_indx=3, max_temperature=300.0, param_dict=param_dict
)
# The p_core model has completed and saved output to output_2a/phase2.dat
# We can now delete the object and load it back from the file
del p_core
print("PrestellarCore object deleted. Model saved to file for later loading.")
[last_model] At T(=R1) and step size H(=R2), the
[last_model] corrector convergence failed repeatedly
[last_model] or with ABS(H) = HMIN.
[last_model] In the above message, R1 = 0.2370106782682D+12 R2 = 0.2719440755672D+03
[last_model] ISTATE -5 - shortening step at time 7500.0000000000000 years
[last_model] At T(=R1) and step size H(=R2), the
[last_model] corrector convergence failed repeatedly
[last_model] or with ABS(H) = HMIN.
[last_model] In the above message, R1 = 0.9540228652608D+12 R2 = 0.2210963245608D+02
[last_model] ISTATE -5 - shortening step at time 30000.000000000000 years
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.9541570229405D+12
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.9551164853240D+12
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.9660632291476D+12
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1106073578882D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1264031996914D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1422168877665D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1580000349818D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1738000466113D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1896001268490D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.1896001968283D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.2370010912606D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.2370112839870D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.2371970662618D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.2542940408843D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.2951342492093D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.3004112155970D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.3161793272756D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.5114094505292D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.7687813132547D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.7900803503452D+13
[last_model] ISTATE -1: Reducing time step
[last_model] At current T(=R1), MXSTEP(=I1) steps
[last_model] taken on this call before reaching TOUT.
[last_model] In the above message, I1 = 10000
[last_model] In the above message, R1 = 0.8129649750453D+13
[last_model] ISTATE -1: Reducing time step
PrestellarCore object deleted. Model saved to file for later loading.
Note that we’ve made two changes to the parameters here which aren’t strictly necessary but can be helpful in certain situations.
Since the gas temperature increases throughout a prestellar core model, freeze out is much slower than thermal desorption for all but the first few time steps. Turning it off doesn’t affect the abundances but will speed up the solution.
We also change abstol and reltol here, largely to demonstrate their use. They control the integrator accuracy and whilst making them smaller does slow down successful runs, it can make runs complete that stall completely otherwise or give correct solutions where lower tolerances allow issues like element conservation failure to sneak in. If your code does not complete or element conservation fails, you can change them.
Checking the Result#
With a successful run, we can check the output. We first load the file and check the abundance conservation, then we can plot it up. To demonstrate how these files can be read in the new class method, we recreate the p_core object but instead of passing param_dict, we use the argument read_file and point it to the full output file we previously wrote to.
phase2_df = uclchem.analysis.read_output_file("output_2a/phase2.dat")
uclchem.analysis.check_element_conservation(phase2_df)
{'H': '0.000%', 'N': '0.000%', 'C': '0.000%', 'O': '0.000%'}
p_core = uclchem.model.PrestellarCore(read_file="output_2a/phase2.dat")
p_core.check_conservation()
Element conservation report
{'H': '0.000%', 'N': '0.000%', 'C': '0.000%', 'O': '0.000%'}
/opt/hostedtoolcache/Python/3.13.14/x64/lib/python3.13/site-packages/uclchem/model.py:615: UserWarning: LEGACY FILE COMPATIBILITY: The file is missing the 'dstep' parameter.
No duplicate timesteps detected, safely assuming dstep=1 for all rows.
This file was likely created with an older UCLCHEM version.
Consider regenerating the file with the current version for full compatibility.
self.legacy_read_output_file(read_file)
df_p_core = p_core.get_joined_dataframes()
species = ["CO", "H2O", "CH3OH", "#CO", "#H2O", "#CH3OH", "@H2O", "@CO", "@CH3OH"]
fig, [ax, ax2] = plt.subplots(1, 2, figsize=(16, 9))
ax = p_core.plot_species(ax, species)
settings = ax.set(
yscale="log",
xlim=(1e2, 1e6),
ylim=(1e-10, 1e-2),
xlabel="Time / years",
ylabel="Fractional Abundance",
xscale="log",
)
ax2.plot(df_p_core["Time"], df_p_core["Density"], color="black")
ax2.set(xscale="log")
ax3 = ax2.twinx()
ax3.plot(df_p_core["Time"], df_p_core["gasTemp"], color="red")
ax2.set(xlabel="Time / year", ylabel="Density")
ax3.set(ylabel="Temperature", facecolor="red", xlim=(1e2, 1e6))
ax3.tick_params(axis="y", colors="red")

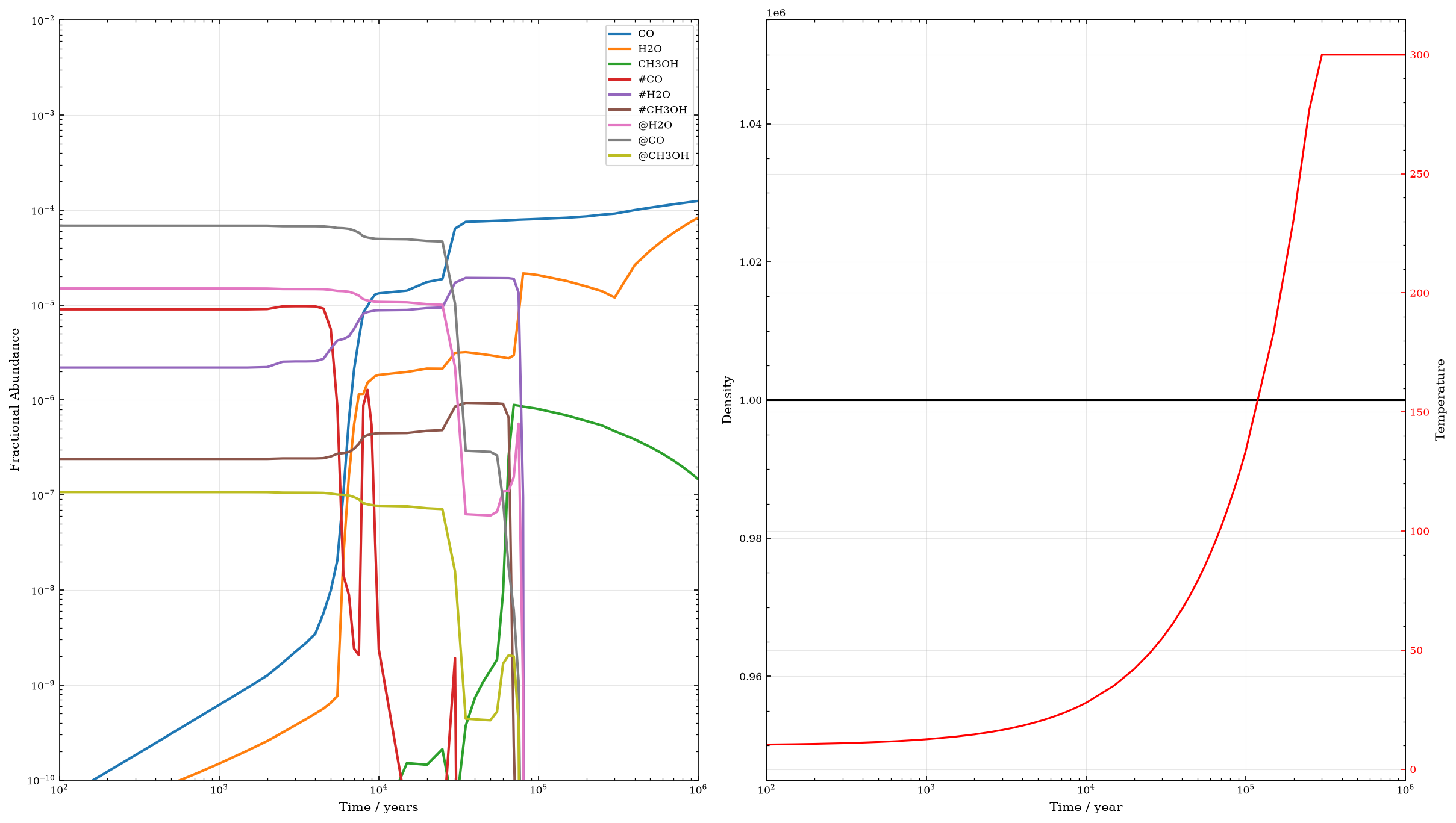

Here, we see the value of running a collapse phase before the science run. Having run a collapse, we start this model with well developed ices and having material in the surface and bulk allows us to properly model the effect of warm up in a prestellar core. For example, the @CO abundance is \(\sim10^{-4}\) and #CO is \(\sim10^{-6}\). As the gas warms to around 30K, the #CO abundance drops drastically as CO’s binding energy is such that it is efficiently desorbed from the surface at this temperature. However, the rest of the CO is trapped in the bulk, surrounded by more strongly bound H2O molecules. Thus, the @CO abundance stays high until the gas reaches around 130K, when the H2O molecules are released along with the entire bulk.
Shocks#
Essentially the same process should be followed for shocks. Let’s run a C-type and J-type shock through a gas of density \(10^4 cm^{-3}\). Again, we first run a simple cloud model to obtain some reasonable starting abundances, then we can run the shocks.
# set a parameter dictionary for phase 1 collapse model
param_dict = {
"endAtFinalDensity": False, # stop at finalTime
"freefall": True, # increase density in freefall
"initialDens": 1e2, # starting density
"finalDens": 1e4, # final density
"initialTemp": 10.0, # temperature of gas
"finalTime": 6.0e6, # final time
"rout": 0.1, # radius of cloud in pc
"baseAv": 1.0, # visual extinction at cloud edge.
"freezeFactor": 0.0,
"abundSaveFile": "output_2a/shockstart.dat",
}
shock_start = uclchem.model.Cloud(param_dict=param_dict)
# Alternatively we could load in a pre-existing version like so
# shock_start = uclchem.model.Cloud(read_file="output_2a/shockstart.dat")
# For file reading demonstration purposes, we will now delete the object.
del shock_start
C-shock#
We’ll first run a c-shock. We choose to crate a 40 km s \(^{-1}\) shock through a gas of density \(10^4\) cm \(^{-3}\), using the abundances we just produced. Note that c-shock is the only model which returns an additional output in its result list. Shock models include an additional variable that can be accessed, the dissipation time. This can be retrieved like so cshock.dissipation_time where cshock would be the object created using uclchem.model.CShock().
# change other bits of input to set up phase 2
param_dict["initialDens"] = 1e4
param_dict["finalTime"] = 1e6
param_dict["abundLoadFile"] = "output_2a/shockstart.dat"
param_dict["outputFile"] = "output_2a/cshock.dat"
cshock = uclchem.model.CShock(shock_vel=40, param_dict=param_dict)
dissipation_time = cshock.dissipation_time
# For file reading demonstration purposes, we will now delete the object.
del cshock
[last_model] Cannot have freefall on during cshock
[last_model] setting freefall=0 and continuing
The code completes fine. We do get a couple of warnings though. First, we’re informed that freefall must be set to False for the C-shock model. Then we get a few integrator warnings. These are not important and can be ignored as long as the element conservation looks ok. However, it is an indication that the integrator did struggle with these ODEs under these conditions. As we load in this model, we could estimate the dissipation time using uclchem.utils.cshock_dissipation_time(), however, for this example we stored it from the object directly.
cshock = uclchem.model.CShock(read_file="output_2a/cshock.dat")
# dissipation_time = uclchem.utils.cshock_dissipation_time(shock_vel=40, initial_dens=param_dict["initialDens"]) # As an example
cshock.check_conservation()
Element conservation report
{'H': '0.000%', 'N': '0.000%', 'C': '0.000%', 'O': '0.000%'}
/opt/hostedtoolcache/Python/3.13.14/x64/lib/python3.13/site-packages/uclchem/model.py:615: UserWarning: LEGACY FILE COMPATIBILITY: The file is missing the 'dstep' parameter.
No duplicate timesteps detected, safely assuming dstep=1 for all rows.
This file was likely created with an older UCLCHEM version.
Consider regenerating the file with the current version for full compatibility.
self.legacy_read_output_file(read_file)

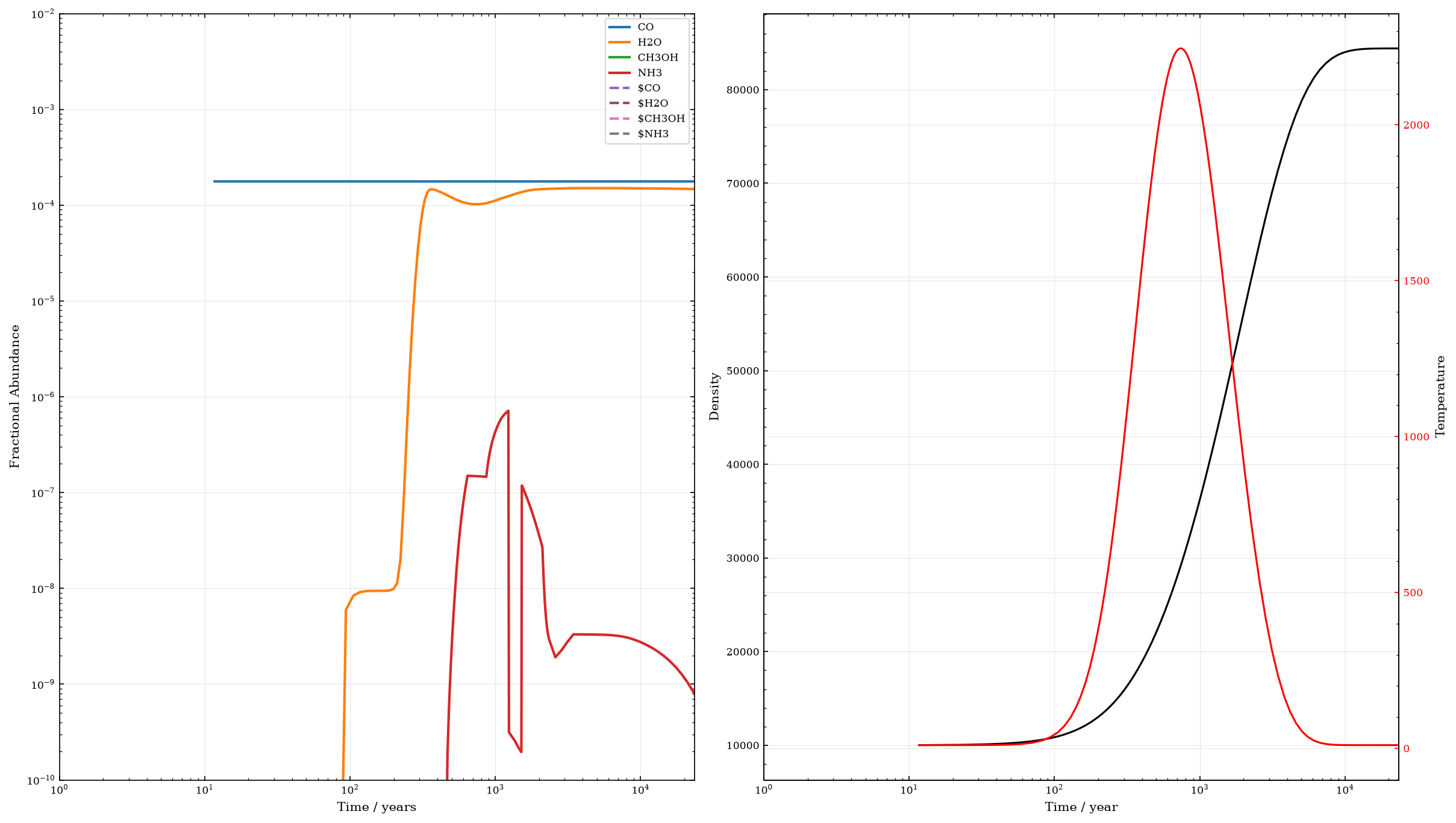

df_cshock = cshock.get_joined_dataframes()
species = ["CO", "H2O", "CH3OH", "NH3", "$CO", "$H2O", "$CH3OH", "$NH3"]
fig, [ax, ax2] = plt.subplots(1, 2, figsize=(16, 9))
ax = cshock.plot_species(ax, species)
settings = ax.set(
yscale="log",
xlim=(1, 20 * dissipation_time),
ylim=(1e-10, 1e-2),
xlabel="Time / years",
ylabel="Fractional Abundance",
xscale="log",
)
ax2.plot(df_cshock["Time"], df_cshock["Density"], color="black")
ax2.set(xscale="log")
ax3 = ax2.twinx()
ax3.plot(df_cshock["Time"], df_cshock["gasTemp"], color="red")
ax2.set(xlabel="Time / year", ylabel="Density")
ax3.set(ylabel="Temperature", facecolor="red", xlim=(1, 20 * dissipation_time))
ax3.tick_params(axis="y", colors="red")
ax3.tick_params(axis="y", colors="red")
J-shock#
Running a j-shock is a simple case of changing function. We’ll run a 10 km s \(^{-1}\) shock through a gas of density \(10^3\) cm \(^{-3}\) gas this time. Note that nothing stops us using the initial abundances we produced for the c-shock. UCLCHEM will not check that the initial density matches the density of the abundLoadFile. It may not always be a good idea to do this, but we should remember the initial abundances really are just a rough approximation.
By default, UCLCHEM uses 500 timepoints for a model, but this turns out not to be enough, which is why we increase the number of timepoints to 1500.
param_dict["initialDens"] = 1e3
param_dict["freefall"] = False # lets remember to turn it off this time
param_dict["reltol"] = 1e-12
shock_vel = 10.0
param_dict["abundLoadFile"] = "output_2a/shockstart.dat"
param_dict["outputFile"] = "output_2a/jshock.dat"
jshock = uclchem.model.JShock(
shock_vel=shock_vel, param_dict=param_dict, timepoints=1500
)
# For file reading demonstration purposes, we will now delete the object.
del jshock
This time, we’ve turned off the freefall option and made reltol a little more stringent. The j-shock ends up running a bit slower but we get no warnings on this run.
jshock = uclchem.model.JShock(read_file="output_2a/jshock.dat")
jshock.check_conservation()
Element conservation report
{'H': '0.000%', 'N': '0.000%', 'C': '0.000%', 'O': '0.000%'}
/opt/hostedtoolcache/Python/3.13.14/x64/lib/python3.13/site-packages/uclchem/model.py:615: UserWarning: LEGACY FILE COMPATIBILITY: The file is missing the 'dstep' parameter.
No duplicate timesteps detected, safely assuming dstep=1 for all rows.
This file was likely created with an older UCLCHEM version.
Consider regenerating the file with the current version for full compatibility.
self.legacy_read_output_file(read_file)

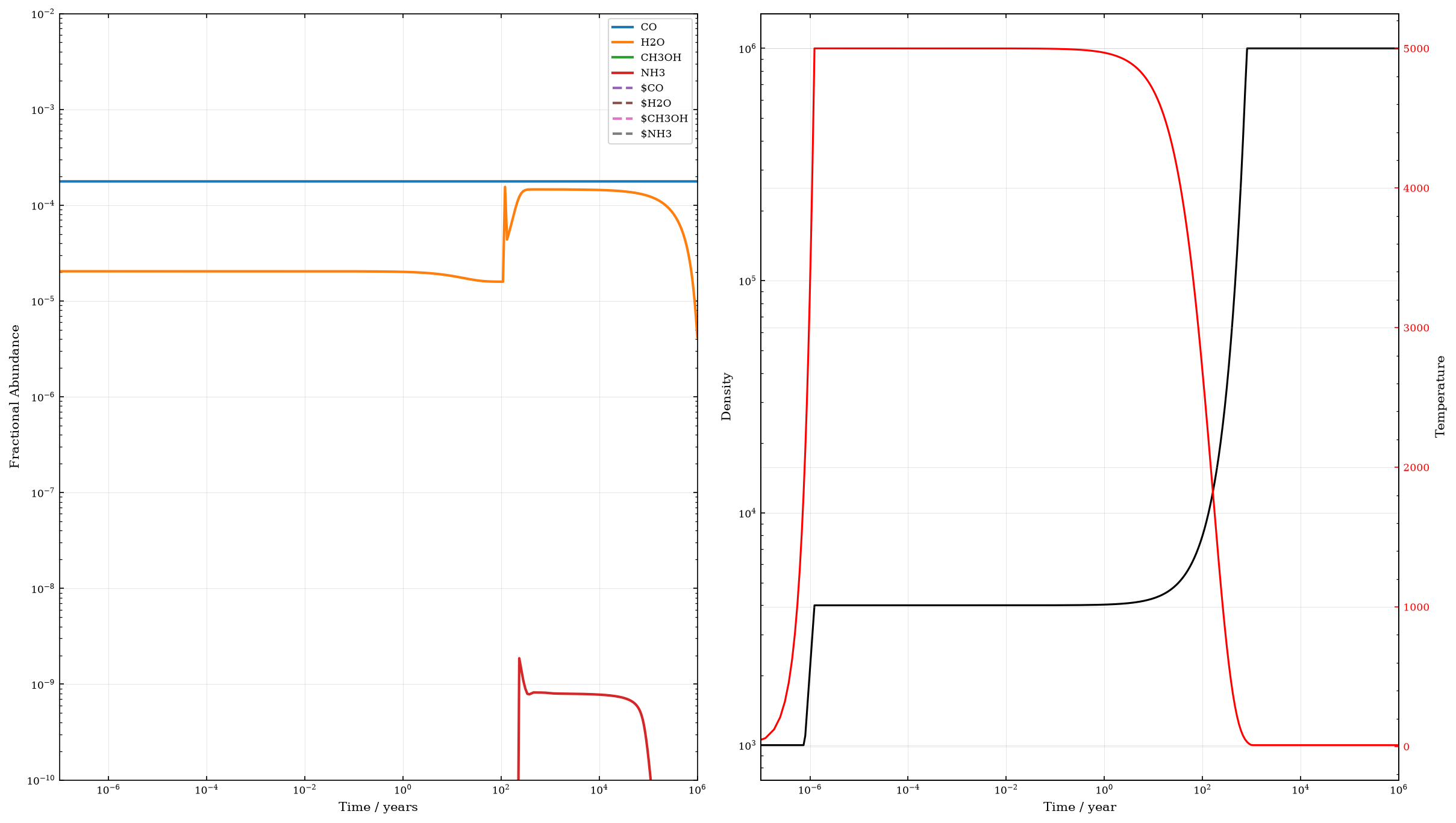

df_jshock = jshock.get_joined_dataframes()
species = ["CO", "H2O", "CH3OH", "NH3", "$CO", "$H2O", "$CH3OH", "$NH3"]
fig, [ax, ax2] = plt.subplots(1, 2, figsize=(16, 9))
ax = jshock.plot_species(ax, species)
settings = ax.set(
yscale="log",
xlim=(1e-7, 1e6),
ylim=(1e-10, 1e-2),
xlabel="Time / years",
ylabel="Fractional Abundance",
xscale="log",
)
ax2.plot(df_jshock["Time"], df_jshock["Density"], color="black")
ax2.set(xscale="log", yscale="log")
ax3 = ax2.twinx()
ax3.plot(df_jshock["Time"], df_jshock["gasTemp"], color="red")
ax2.set(xlabel="Time / year", ylabel="Density")
ax3.set(ylabel="Temperature", facecolor="red", xlim=(1e-7, 1e6))
ax3.tick_params(axis="y", colors="red")
That’s everything! We’ve run various science models using reasonable starting abundances that we produced by running a simple UCLCHEM model beforehand. One benefit of this method is that the abundances are consistent with the network. If we start with arbitrary, perhaps observationally motivated, abundances, it would be possible to initiate the model in a state our network could never produce.
However, one should be aware of the limitations of this method. A freefall collapse from low density to high is not really how a molecular cloud forms and so the abundances are only approximately similar to values they’d truly have in a real cloud. Testing whether your results are sensitive to things like the time you run the preliminary for or the exact density is a good way to make sure these approximations are not problematic.
Bear in mind that you can use abundSaveFile and abundLoadFile in the same model run. This lets you chain model runs together. For example, you could run a c-shock from a cloud model as we did here and then a j-shock with the c-shock’s abundances as the initial abundances.
